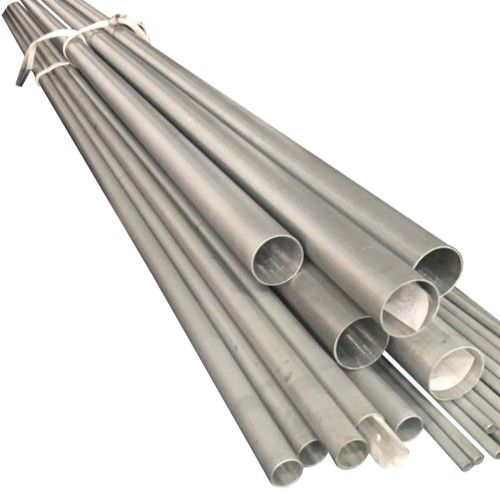

ASTM B444 Inconel 625 Seamless Welded Pipe UNS N06625/ With Cold-Worked

Name: ASTM B444 Inconel 625 Seamless Welded Pipe UNS N06625/ With Cold-Worked
Brand: Wenzhou Zheheng Steel Industry Co.,Ltd
SKU: Inconel N06625
Price: 2,600.00 USD
Availability: InStock

Rincian produk

Tempat asal: Wenzhou, Cina

Nama merek: Zheheng

Sertifikasi: ISO9001

Model Number: Inconel N06625

Document: Brosur Produk PDF

Syarat Pembayaran & Pengiriman

Kuantitas min Order: MOQ500kg

Kemasan rincian: Paket Standar Layak Laut

Waktu pengiriman: 7-15 hari kerja setelah menerima pembayaran

Syarat-syarat pembayaran: L/C, D/P, T/T, Western Union

Menyediakan kemampuan: 5000 Ton/Ton per Bulan

Dapatkan Harga Terbaik

Rincian produk

Deskripsi Produk

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                Inconel 625 Seamless Welded Pipe, Inconel Seamless Welded Pipe, UNS N06625 Inconel Seamless Pipe


NPS:	1/8''-24''	Jangka Waktu Pembayaran:	30%TT Uang Muka + Saldo 70%.
Wall thickness:	SCH10S,SCH40, SCH XS, SCH 60,SCH80S,SCH12020,SCH1160,SCH	Waktu Pengiriman:	15-21 hari
Application:	Valves and gears,Engine components,High strength and boat propeller shafts,Plastic moulding dies	Bentuk bagian:	Bulat
Finished:	solution annealed condition,annealed condition	Istilah Harga:	FOB CIF CFR EXW dll.
Grade:	GR.1,GR.2

NPS:	1/8''-24''
Jangka Waktu Pembayaran:	30%TT Uang Muka + Saldo 70%.
Wall thickness:	SCH10S,SCH40, SCH XS, SCH 60,SCH80S,SCH12020,SCH1160,SCH
Waktu Pengiriman:	15-21 hari
Application:	Valves and gears,Engine components,High strength and boat propeller shafts,Plastic moulding dies
Bentuk bagian:	Bulat
Finished:	solution annealed condition,annealed condition
Istilah Harga:	FOB CIF CFR EXW dll.
Grade:	GR.1,GR.2

ASTM B444 Inconel 625 Seamless Welded Pipe UNS N06625/ With Cold-Worked

Overview

ASTM B444 Seamless Pipe is a nickel-based super alloy that offers properties of high strength and resistance to elevated temperatures. It also demonstrates remarkable protection against oxidation and corrosion. ASTM B444 grade 1 has the ability to high stress and a wide range of temperatures, both in and out of water, as well as being able to resist corrosion while being exposed to highly acidic environments makes it a proper choice for marine and nuclear applications. B444 UNS N06625 is invented for the purpose of creating a material that could be useful for steam-line piping. Some changes were made to its original composition that has enabled it to be even more weldable and creep-resistant.

Inconel 625 Welded Pipes are a superalloy that has been solid solution strengthened for use in both elevated temperature and high pressured applications. The pipes produced under ASTM B444 UNS N06625 specification often indicates that these pipes have a seamless construction.

Chemical composition

Grade	C	Mn	Si	S	Cu	Fe	Ni	Cr
ASTM B 444 UNS N06625	0.10max	0.50 max	0.50 max	0.015max	–	5.0 max	58.0 min	20.0 – 23.0

Mechanical Properties

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
ASTM B444 UNS N06625	8.4 g/cm3	1350 °C (2460 °F)	Psi – 1,35,000 , MPa – 930	Psi – 75,000 , MPa – 517	42.50%

Application

1.Petrochemical industry. Due to their excellent high temperature, corrosion and pressure resistance, they are used to manufacture pipelines, storage tanks and reactors under high temperature and pressure to meet the requirements of the petrochemical industry for material strength and corrosion resistance.

2.Aerospace field. In this field, the required materials must have the characteristics of lightweight, high strength and high temperature resistance. The Inconel625 pipe meets these requirements and is therefore used to manufacture key components such as engine nozzles, combustion chambers, turbine blades and exhaust systems to ensure aircraft can take off, land and fly ely.

3.Medical device manufacturing field. Due to its good corrosion resistance and biocompatibility, it is widely used in the manufacture of human implants and surgical instruments, such as heart stents, artificial joints, bone nails and dental equipment.

Heat-treated conditions

Grade 1 (annealed)—Material is normally employed in service temperatures up to 1100°F (593°C).

Grade 2 (solution annealed)—Material is normally employed in service temperatures above 1100°F (593°C) when resistance to creep and rupture is required.

Why choose us

1.Size control

2.Chemical composition control

4.ultrasonic testing of steel tube

3.hydraulic testing machine

Package detail

ASTM B444 Inconel 625 Seamless Welded Pipe UNS N06625/ With Cold-Worked 0
