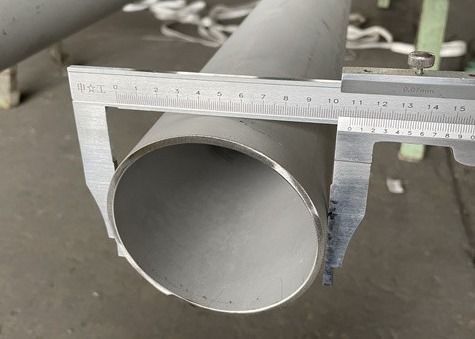

Name: JIS SUS316L Stainless Steel Welded Pipe With Circular Cross Section
Brand: Wenzhou Zheheng Steel Industry Co.,Ltd
SKU: SUS316L
Price: 2,600.00 USD
Availability: InStock

Rincian produk

Tempat asal: Wenzhou, Cina

Nama merek: Zheheng

Sertifikasi: ISO9001

Nomor model: SUS316L

Document: Brosur Produk PDF

Syarat Pembayaran & Pengiriman

Minimum Order Quantity: MOQ 1Ton

Kemasan rincian: Dalam kasus kayu atau palet, atau sesuai kebutuhan klien

Waktu pengiriman: 7-15 hari kerja setelah menerima pembayaran

Syarat-syarat pembayaran: L/C, D/P, T/T, Western Union

Menyediakan kemampuan: 1000 Ton/Ton per Bulan

Dapatkan Harga Terbaik

Rincian produk

Deskripsi Produk

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                JIS SUS316L Stainless Steel Welded Pipe, SUS316L Stainless Steel Welded Pipe, 150mm Stainless Welded Pipe


Thickness:	1mm-150mm(SCH10-XXS) or as required	OD:	6mm-2500mm (3/8"-100") or as required
Bentuk bagian:	Bulat, persegi, persegi panjang	Surface finish:	Polishing, Hair line,Pickling
Ketentuan Harga:	FOB,CIF,CFR,EXW	Panjang:	1000-12000mm
Penggunaan:	Industri	Teknik:	Ditarik Dingin atau Digulung Panas
Mulus/Dilas:	Lasan

Thickness:	1mm-150mm(SCH10-XXS) or as required
OD:	6mm-2500mm (3/8"-100") or as required
Bentuk bagian:	Bulat, persegi, persegi panjang
Surface finish:	Polishing, Hair line,Pickling
Ketentuan Harga:	FOB,CIF,CFR,EXW
Panjang:	1000-12000mm
Penggunaan:	Industri
Teknik:	Ditarik Dingin atau Digulung Panas
Mulus/Dilas:	Lasan

JIS SUS316L Stainless Steel Welded Pipe With Circular Cross Section

Specification

Ends	Plain end
Standard	JIS DIN ASTM ASME
Delivery time	within 45 -60 days.
Payment Terms	40% prepayment Balance before lodaing.
Shipping Terms	FOB NINGBO, after the inspection of goods at supplier's warehouse
Package	Standard export seaworthy package,or as required.

Common Industries

Architecture and Construction

Automotive and Transportation

Medical

Oil and GasFood and Drug

SUS316L stainless pipe Chemical Composition

Mo	C ≤	Si ≤	Mn ≤	P ≤	S ≤	Ni ≤	Cr
2.00-3.00	0.03	0.75	2	0.045	0.03	14.00	16.00-18.00

Mechanical Composition

Temper	Annealed		Cold worked (approx. 20%)
Material:SUS316L
Tensile Rm	70	ksi (min)	102-131	ksi (min)
Tensile Rm	485	MPa (min)	700-900	mpa (min)
R.p. 0.2% Yield	27	ksi (min)	73-102	ksi (min)
R.p. 0.2% Yield	182	MPa (min)	500-700	mpa (min)
Elongation (2” or 4D gl)	35	% (min)	40	% (min

Product Testing

Coating Thk Test

Geometry inspection

Ultrasonic Inspection

Nondestructive Testing

Hydrostatic Testing

Package Process

1.with plastic cap to protect both ends

2.weaving bag wrapped outside the pipe

3.then pack into wooden case.


JIS SUS316L Stainless Steel Welded Pipe With Circular Cross Section 0
