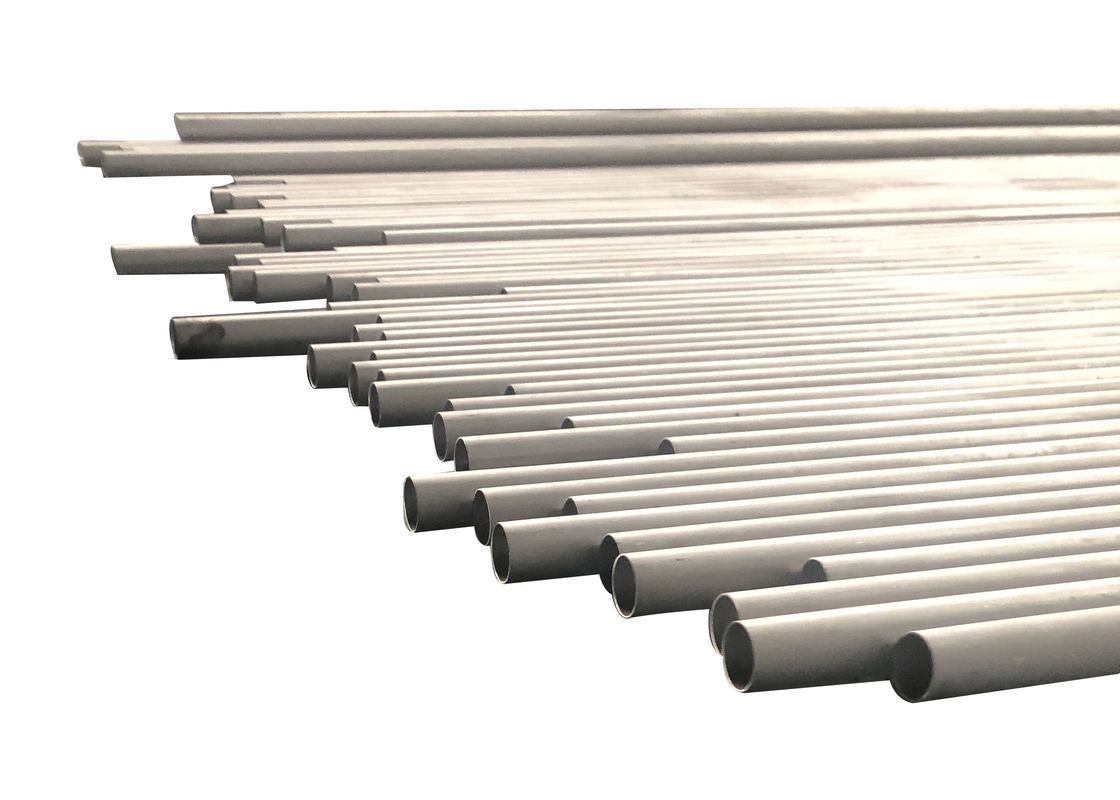

High Luster Stainless Seamless Steel Pipe 304 304L For Biotechnology

Name: High Luster Stainless Seamless Steel Pipe 304 304L For Biotechnology
Brand: Wenzhou Zheheng Steel Industry Co.,Ltd
SKU: ASTM304，304L
Price: 2,600.00 USD
Availability: InStock

Rincian produk

Tempat asal: Wenzhou, Cina

Nama merek: ZHE HENG

Sertifikasi: ISO9001,CE，BV

Model Number: ASTM304，304L

Dokumen: Brosur Produk PDF

Syarat Pembayaran & Pengiriman

Kuantitas min Order: 500kg

Harga: $1000-4200/Ton

Packaging Details: As to clients' requirements，Wooden Cases，Bundle Packin

Waktu pengiriman: 30-45 hari kerja

Syarat-syarat pembayaran: L/C, T/T, D/P, D/A

Menyediakan kemampuan: 1000+

Dapatkan Harga Terbaik

Rincian produk

Deskripsi Produk

Menyoroti:
                                                                                                                                                                                                                                                                                                                High luster stainless seamless steel pipe, Seamless 304L stainless steel pipe, stainless steel pipe For Biotechnology


Nama Istilah:	Pipa baja tahan karat	Kelas Bahan:	ASTM304,ASTM304L
membentuk:	Pipa melengkung, Pipa Persegi, Pipa Persegi Panjang	Technique:	Cold Rolled,Pickling
Length:	1000mm Or 16000mm	Size:	As per requirement，O.D 0.4~2.0mm
Jenis Jalur Pengelasan:	Mulus, dilas	Package:	As to clients' requirements，Bundle Packing，Wooden Cases

Nama Istilah:	Pipa baja tahan karat
Kelas Bahan:	ASTM304,ASTM304L
membentuk:	Pipa melengkung, Pipa Persegi, Pipa Persegi Panjang
Technique:	Cold Rolled,Pickling
Length:	1000mm Or 16000mm
Size:	As per requirement，O.D 0.4~2.0mm
Jenis Jalur Pengelasan:	Mulus, dilas
Package:	As to clients' requirements，Bundle Packing，Wooden Cases

High Luster Stainless Seamless Steel Pipe 304 304L For Biotechnology

Product Description

Overview

Stainless steel decorative tube is normally bright tube, the surface is normal matte or mirror state, in addition, decorative tube also uses electroplating, painting, spraying and other processes for its surface a layer of more bright color; The surface of the industrial pipe is normally acid white surface, that is, pickling surface, the surface requirements are not strict, the wall thickness is not uniform, the internal and external surface brightness of the pipe is low, the fixed size cost is high, the internal and external surface should have pitting and black spots, which is not easy to remove.

Specification:

Outside Diameter	OD 0.28-1219mm
Thickness	0.08-100mm
Seamless Stainless Steel Pipes	1/8“NB to 32“NB IN
Production Process	Cold Drawn,Bright Anneal.etc
Type	Seamless,welded
Surface	Pickling,Bright；
Price Item	EXW,FOB,CNF,CIF etc
Application	It is often used as a car frame and exhaust pipe to produce a variety of conventional weapons, gun barrels and shells.
Ends:	Beveled or plain end, square cut, burr free

Stainless Steel Seamless Pipe Chemical Component:

Chemical Composition about stainless steel pipe
Grade	C ≤	Si ≤	Mn ≤	P ≤	S ≤	Ni ≤	Cr ≤
304	0.08	1	2	0.045	0.03	10.00-14.00	16.00-18.00
304L	0.035	0.75	2	0.045	0.03	10.00-15.00	16.00-18.00

Size table:

Seamless stainless steel pipes

WALL THCKNESS FOR STAINLESS STEEL PIPE &T UBE (ASME B36.10 & B36.19)
DNmm	DNin	φmm	SCH5S	SCH10S	SCH40S	STD	Sch40	Sch60	Sch80s	XS	Sch80	Sch120	Sch140	Sch160	XXS
6	1/8	10.3		1.24	1.73	1.73	1.73		2.41	2.41	2.41
8	1/4	13.7		1.65	2.24	2.24	2.24		3.02	3.02	3.02
10	3/8	17.1		1.65	2.31	2.31	2.31		3.2	3.2	3.2
15	1/2	21.3	1.65	2.11	2.77	2.77	2.77		3.73	3.73	3.73			4.78	7.47
20	3/4	26.7	1.65	2.11	2.87	2.87	2.87		3.91	3.91	3.91			5.56	7.82
25	1	33.4	1.65	2.77	3.38	3.38	3.38		4.55	4.55	4.55			6.35	9.09
32	1 1/4	42.2	1.65	2.77	3.56	3.56	3.56		4.85	4.85	4.85			6.35	9.7
40	1 1/2	48.3	1.65	2.77	3.68	3.68	3.68		5.08	5.08	5.08			7.14	10.15
50	2	60.3	1.65	2.77	3.91	3.91	3.91		5.54	5.54	5.54			8.74	11.07
65	2 1/2	76	2.11	3.05	5.16	5.16	5.16		7.01	7.01	7.01			9.53	14.02
80	3	88.9	2.11	3.05	5.49	5.49	5.49		7.62	7.62	7.62			11.13	15.24
90	3 1/2	101.6	2.11	3.05	5.74	5.74	5.74		8.08	8.08	8.08
100	4	114.3	2.11	3.05	6.02	6.02	6.02		8.56	8.56	8.56	11.13		13.49	17.12
125	5	141.3	2.77	3.4	6.55	6.55	6.55		9.53	9.53	9.53	12.7		15.88	19.05
150	6	168.3	2.77	3.4	7.11	7.11	7.11		10.97	10.97	10.97	14.27		18.26	21.95
200	8	219.1	2.77	3.76	8.18	8.18	8.18	10.31	12.7	12.7	12.7	18.26	20.62	23.01	22.23
250	10	273	3.4	4.19	9.27	9.27	9.27	12.7	12.7	12.7	15.09	21.44	25.4	28.58	25.4
300	12	323.8	3.96	4.57	9.53	9.53	10.31	14.27	12.7	12.7	17.48	25.4	28.58	33.32	25.4
350	14	355.6	3.96	4.78		9.53	11.13	15.09		12.7	19.05	27.79	31.75	35.71
400	16	406.4	4.19	4.78		9.53	12.7	16.66		12.7	21.44	30.96	36.53	40.49
450	18	457	4.19	4.78		9.53	14.27	19.05		12.7	23.83	34.93	39.67	45.24
500	20	508	4.78	5.54		9.53	15.09	20.62		12.7	26.19	38.1	44.45	50.01
550	22	559	4.78	5.54		9.53		22.23		12.7	28.58	41.28	47.63	53.98
600	24	610	5.54	6.35		9.53	17.48	24.61		12.7	30.96	46.02	52.37	59.54
650	26	660				9.53				12.7
700	28	711				9.53				12.7
750	30	762	6.35	7.92		9.53				12.7
800	32	813				9.53	17.48			12.7

Conforms to ANSI B36.19 and ANSI B36.10 standards
