ASME B16.5 F304 Stainless Steel Flange 150LBS Forged WN

Name: ASME B16.5 F304 Stainless Steel Flange 150LBS Forged WN
Brand: Wenzhou Zheheng Steel Industry Co.,Ltd
SKU: Flensa Leher Las
Price: 3,750.00 USD
Availability: InStock

Rincian produk

Tempat asal: Wenzhou, Cina

Nama merek: Zheheng

Sertifikasi: ISO9001:2008

Nomor model: Flensa Leher Las

Document: Brosur Produk PDF

Syarat Pembayaran & Pengiriman

Minimum Order Quantity: 500KG per Month

Kemasan rincian: Dalam kasus kayu atau palet, atau sesuai kebutuhan klien

Waktu pengiriman: 7-15 hari kerja setelah menerima pembayaran

Syarat-syarat pembayaran: L/C, D/A, D/P, T/T, Western Union

Menyediakan kemampuan: 1000 Ton/Ton per Bulan

Dapatkan Harga Terbaik

Rincian produk

Deskripsi Produk

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                F304 Stainless Steel Flange, Stainless Steel Forged WN Flange, ASME B16.5 Stainless Steel Flange


Keywords:	stainless steel WN flange	Teknis:	Penempaan
Ukuran:	1/2"-24"	Penggunaan:	Sambungan Jalur Pipa
Standard:	ASME,SH,DIN	Material:	317/L,304/L,316/L,310/S
Permukaan:	Minyak anti karat, pernis bening	Koneksi:	Pengelasan, berulir
item harga:	EXW,FOB,CIF,CFR	Pressure:	150LBS~2500LBS

Keywords:	stainless steel WN flange
Teknis:	Penempaan
Ukuran:	1/2"-24"
Penggunaan:	Sambungan Jalur Pipa
Standard:	ASME,SH,DIN
Material:	317/L,304/L,316/L,310/S
Permukaan:	Minyak anti karat, pernis bening
Koneksi:	Pengelasan, berulir
item harga:	EXW,FOB,CIF,CFR
Pressure:	150LBS~2500LBS

ASME B16.5 F304 Stainless Steel Flange 150LBS Forged WN

Overview

Welding neck flanges mainly have higher necks, which improves the rigidity and bearing capacity of the flanges. The purpose is to transfer the pressure of the pipeline, thereby reducing the damage to the flange, and is suitable for occasions with high pressure and temperature. The main production processes by our company are all forged, Flange density, the possibility of leakage is small , Welding neck flange is more convenient for on-site installation, and can omit the process of welding and scratching.

Specification

Material	Carbon,Alloy and Stainless Steel
Standard	ASME B16.5,SH3406,DIN2576/27/66,DIN2632-2638
Material Grade	309/S,347/H,321/321H,904/L,S32750/F53/2507,S32205/F60 S31803/F51
Size	DN10-DN800
Thickness	Schedule 10(S) to SCH 160
Face Type	FF,RF,RTJ,GF,TF

Application

1.Preferred for high-pressure, subzero or elevated temperature.

2.Hub is tapered and bored to match pipe’s inside diameter so flow is not restricted, preventing turbulence and reducing erosion.

3.Easily radiographed and provides excellent stress distribution.

Advantage

1.Butt welded flange has the characteristics of easy deformation ,good sealing.

2. It has corresponding rigidity and elasticity.

3.The distance between the weld and the joint surface is large, and the joint surface will not be deformed because of the welding temperature, so it is widely used in the welding of pipelines.

Chemical composition

Grade	C	Mn	P	S	Si	Ni	Cr
F304	0.08	2	0.045	0.03	1	8.0 - 11.0	18.0 - 20.0

Mechanical propcrties

Mechanical Properties
Gr.	Tensile Strength (MPa) minimum	Yield Strength 0.2% Proof (MPa) minimum	Elongation (% in 50mm) minimum	Hardness
				Rockwell B(HR B) max	Brinell (HB) max
F304	515	205 C	40	92	201

Shipping

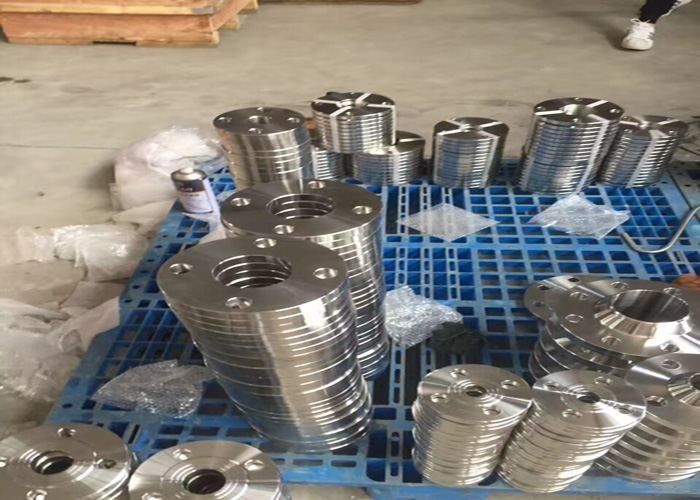

ASME B16.5 F304 Stainless Steel Flange 150LBS Forged WN 0

PS:We also use plywood cases to package our flange,reduce road bumps and get goods to customers ely.
