Austenitic Seamless Tube Stainless 309s X12CrNi23-13 1.4833 UT ET Impact Test

Name: Austenitic Seamless Tube Stainless 309s X12CrNi23-13 1.4833 UT ET Impact Test
Brand: Wenzhou Zheheng Steel Industry Co.,Ltd
SKU: 140mm
Price: 2,600.00 USD
Availability: InStock

Rincian produk

Tempat asal: Cina

Nama merek: ZHEHENG

Sertifikasi: PED .TUV. ISO

Nomor model: 140mm

Document: Brosur Produk PDF

Syarat Pembayaran & Pengiriman

Kuantitas min Order: 500kg

Harga: Bisa dinegosiasikan

Kemasan rincian: kemasan kantong plastik, kemasan peti kayu, atau sesuai pesanan

Waktu pengiriman: 5--30 hari

Syarat-syarat pembayaran: L/C,,T/T

Menyediakan kemampuan: 300 -500 TON per bulan

Dapatkan Harga Terbaik

Rincian produk

Deskripsi Produk

Menyoroti:
                                                                                                                                                                                                                                                                                ss seamless tube, 304 stainless steel seamless pipe


Bahan:	309s ,X12CrNi23-13 ,1.4833	Standar:	Baja Austenit
Diameter luar:	140mm	Ketebalan Dinding:	10mm
Jenis:	SMLS	Fitur:	pengawetan dan anil
Aplikasi:	Superheater, HeatExchanger, dan Tabung Kondensor

Bahan:	309s ,X12CrNi23-13 ,1.4833
Standar:	Baja Austenit
Diameter luar:	140mm
Ketebalan Dinding:	10mm
Jenis:	SMLS
Fitur:	pengawetan dan anil
Aplikasi:	Superheater, HeatExchanger, dan Tabung Kondensor

Austenitic Seamless Tube Stainless 309s X12CrNi23-13 1.4833 UT ET Impact Test

Austenitic Seamless Stainless Steel Tubing ,309s ,X12CrNi23-13 ,1.4833,UT,ET,Impact Test,

Zheheng steel deal with 309sSeamless Stainless Steel Tubing has different names in different standards, the European standard is 1.4833, the chemical conforms to X12CrNi23-13, and in the American standard we are generally called 309s, referred to as 309s stainless steel tubing. Zheheng steel is a Chinese company specializing in the production of various 140mm austenitic stainless steel seamless tubing. The products are strictly in accordance with the American standard. European standard, Japanese standard implementation.

309 stainless steel pipe belongs to the international stainless steel marking method. 309S stainless steel tube--S30908 (American AISI, ASTM)
The Chinese brand corresponding to 309S is 0Cr23Ni13
Characteristics and uses: Corrosion resistance and heat resistance are better than 0Cr19Ni9.

Product description :

Product name :Austenitic Seamless Stainless Steel Tubing ,309s ,X12CrNi23-13 ,1.4833,
Brand name :zheheng steel

size:140mm
Surface :Pickling, Annealed
Certificate :BV, ,PED, ISO9001
Packing :plastic packing ,
Shipment :By sea,FCL

Length:As per client's requirement, max length: 12000mm
Standard:ASTM A312/A312M, ASTM A213/A213M
Test:UT,ET,Impact Test
Material: :309s ,X12CrNi23-13 ,1.4833

Application :

1. General service

2. Curatorial Industry

3. Food Industry

4. Ornamental

5. Aerospace Industry

6. Petrochemical

7. Fluid transport

8. Nuclear Industr

9. Boiler heat- exchanger

10. Oil and gas service

Products 309s stainless steel seamless tubing chemical composition range:

Grade	C ≤	Si ≤	Mn ≤	P ≤	S ≤	Ni ≤	Cr ≤
309	0.15	0.75	2	0.045	0.03	12.00-15.00	22.00-24.00

we are also supply other steel grade material

Duplex Steel :	S32101,S32205,S31803,S32304,S32750, S32760
	Others:TP405,TP409, TP410, TP430, TP439 ...
	08Х17Т,08Х13,12Х13,12Х17,15Х25Т,04Х18Н10,08Х20Н14С2, 08Х18Н12Б,
	10Х17Н13М2Т,10Х23Н18,08Х18Н10,08Х18Н10Т, 08Х18Н12Т,08Х17Н15М3Т,
	12Х18Н10Т,12Х18Н12Т,12Х18Н9, 17Х18Н9, 08Х22Н6Т,
European Standard	1.4301,1.4307,1.4948,1.4541,1.4878,1.4550,1.4401,1.4404,1.4571,
	1.4438,1.4841,1.4845,1.4539,1.4162, 1.4462, 1.4362, 1.4410, 1.4501

Inspection and Test Procedure:

1.100% PMI,Spectro Chemical Aanlysis Test for Raw Material
2.100% Dimension & Visual Examination
3. Mechanical Properties Test Include Tension Test,Flaring Test (For Seamless tube/pipe)/ Flange Test (For Welded Pipe & Tube), Hardness Test ,Reversed Flattening Test
4.100% Hydrostatic Test or 100% NON-DESTRUCTIVE Test (ET or UT)
5.Radiographic Test for Welded Pipe (shall be accordance with specification,or shall be as agreed upon between the purchaser and vendor)
6.Straightness Test (optional)
7.Roughness Test (optional)
8.Intergranular Corrosion Test(optional)
9.Impact Test (optional)
10.Grain Size Determinations (optional)
NOTES : ALL THE TESTS AND INSPECTION RESULT NEED TO BE SHOWED IN REPORTS ACCORDING TO STANDARD AND SPECIFICATION.

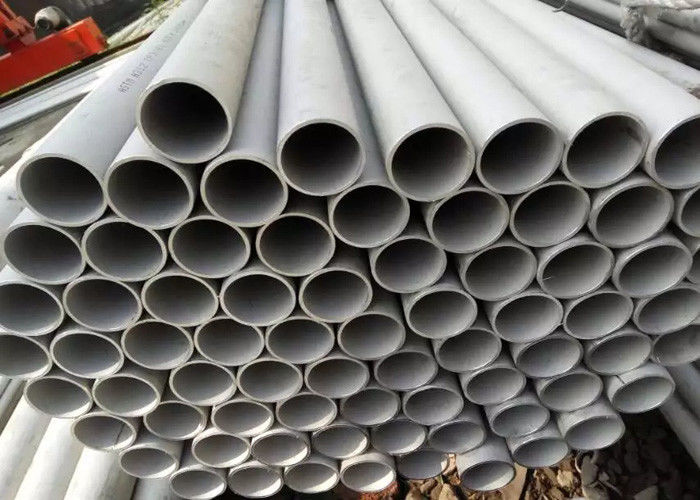

Our products Austenitic Seamless Stainless Steel Tubing ,309s ,X12CrNi23-13 ,1.4833 paclking show:

Austenitic Seamless Tube Stainless 309s X12CrNi23-13 1.4833 UT ET Impact Test 0
