Menyoroti:
seamless pipes and tubes
, ss seamless pipe
Sertifikat: |
ABS, DNV, GL, BV, PED 97/23/EC |
Standar: |
ASTM, AISI, DIN, EN, GB, JIS |
Jenis: |
Mulus |
Teknik: |
Gulungan Dingin |
Nama: |
Pipa baja tahan karat mulus TP32TI |
Bahan: |
TP316Ti / 1.4571 / X6CRNIMOTI17-12-2 |
TP316Ti Stainless Steel Seamless Pipe , Stainless Steel Welded Pipes Grade 304
TP316Ti / 1.4571 / X6CRNIMOTI17-12-2 Cold Roll Stainless Steel Seamless Pipe Chemical Properties
ZHEHENG STEEL supply 316Ti stainless is a titanium-stabilized version of Type 316 molybdenum-bearing austenitic stainless steel.
It is also known as DIN/EN designation No. 1.4571. The Type 316 alloys offer excellent resistance to general corrosion and pitting/crevice corrosion, which is better than the conventional chromium-nickel austenitic stainless steels such as Type 304. They also offer higher creep, stress-rupture and tensile strength at elevated temperature.
products description :
Item: Stainless Steel Seamless Pipes
Brand : zheheng steel
Standard : GB, ASTM, AISI, ASME, EN. BS and others
SS Grade: TP201, 202, 304, 304L, 308, 309, 309S, 310, 310S, 316, 316L, 317, 317L, 321, 904L
Tickness : 0.5 - 30mm
Outer Diameter : 6 - 610mm
Chemical composition of 316ti stainless seamless pipe:
C(%): ≤0.08 Si(%): ≤1.00 Mn(%): ≤2.00 P(%)≤: 0.045 S(%)≤: 0.03 Cr(%): 16.0～18.0 Ni(%): 10.0～ 14.0 Mo(%): 2.00~3.00 Others (%): 5(C+N)≤Ti≤0.70, N≤0.10
Mechanical properties of 316ti stainless steel:
YS(Mpa)≥205 TS(Mpa)≥520 EL(%)≥40 Hv 200°
316ti stainless steel management theory weight calculation formula: (outer diameter - wall thickness) × wall thickness × 0.02513 = KG / M
description for TP316Ti / 1.4571 / X6CRNIMOTI17-12-2 stainless steel pipes :
| Standard: |
GB, AISI, ASTM, ASME, EN, BS, DIN, JIS |
| Size: |
ANSI /ASME size is under,other standard of size is for ready choice,O.D.:0.23''to 48''(5.8-1219mm)W.T.:0.04''to 2''(1.0-50.8mm) |
| Length: |
Max.18 Meter,NPS 1/8''-48'' Schedule:5/5S,10/10S,20/20S,40/40S,80/80S,120/120S,160/160S according to ANSI B36.19/36.10 |
| Surface: |
Satin Finish(180#.240#.320#).,Bright Finish(400#,600#,mirror),Mill Finish(2B),Hairline-Finish(HL/Brushed),Ti-gold, Glossy matt,dull and so on. |
| Application: |
Decoration, construction and upholstery, etc |
| Package: |
Each tube in a plastic bag with size label outside and pack in small bundles or according to customer request |
| Lead Time: |
7-10days for one FCL Or according to order list detail |
US,CN,EU 1.4307 / 321 / 06Cr18Ni11Ti/ 1.4541 /321H /316L / 022Cr17Ni12Mo2 /1.4404 /316H / 07Cr17Ni12Mo2 / 316Ti / 06Cr17Ni12Mo2Ti / 1.4571 SEAMLESS STAINLESS STEEL PIPE CHEMICAL COMPARISON TABLE
| STEEL/GRADE |
C |
Mn |
P |
S |
Si |
Ni |
Cr |
Mo |
Ti |
N |
OTHER |
| 1.4307 |
1.4307 |
0.03 |
2 |
0.045 |
0.015 |
1 |
8~10 |
17.5~19.5 |
|
|
|
|
| 321 |
S32100 |
0.08 |
2 |
0.045 |
0.03 |
1 |
9~12 |
17~19 |
|
5C-0.7 |
|
|
| 06Cr18Ni11Ti |
S32168 |
0.08 |
2 |
0.035 |
0.03 |
1 |
9~12 |
17~19 |
|
5C~0.7 |
|
|
| 1.4541 |
1.4541 |
0.08 |
2 |
0.045 |
0.015 |
1 |
9~12 |
17~19 |
|
5C~0.7 |
|
|
| 321H |
S32169 |
0.04~0.1 |
2 |
0.045 |
0.03 |
1 |
9~12 |
17~19 |
|
4C~0.7 |
|
|
| 316L |
S31603 |
0.03 |
2 |
0.045 |
0.03 |
1 |
10~14 |
16~18 |
2-3 |
|
|
|
| 022Cr17Ni12Mo2 |
S31603 |
0.03 |
2 |
0.035 |
0.03 |
1 |
10~14 |
16~18 |
2-3 |
|
|
|
| 1.4404 |
1.4404 |
0.03 |
2 |
0.045 |
0.015 |
1 |
10~13 |
16.5~18.5 |
2-2.5 |
|
|
|
| 316H |
S31609 |
0.04~0.1 |
2 |
0.045 |
0.03 |
1 |
10~14 |
16~18 |
2-3 |
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
Chemical Composition complementary:
1.1 The alloy steels shall conform to the chemical require-
ments given in Table 1.
1.2 The stainless steels shall conform to the chemical requirements given in Table 2.
2 Product for TP316Ti / 1.4571 / X6CRNIMOTI17-12-2 Analysis:
2.1 An analysis of either one billet or one tube shall be made from each heat. The chemical composition thus determined shall conform to the requirements specified.
2.2 If the original test for product analysis fails, retests of two additional billets or tubes shall be made. Both retests, for the elements in question, shall meet the requirements of the specification; otherwise all remaining material in the heat shall
be rejected or, at the option of the producer, each billet or tube may be individually tested for acceptance. Billets or tubes that do not meet the requirements of the specification shall be rejected.

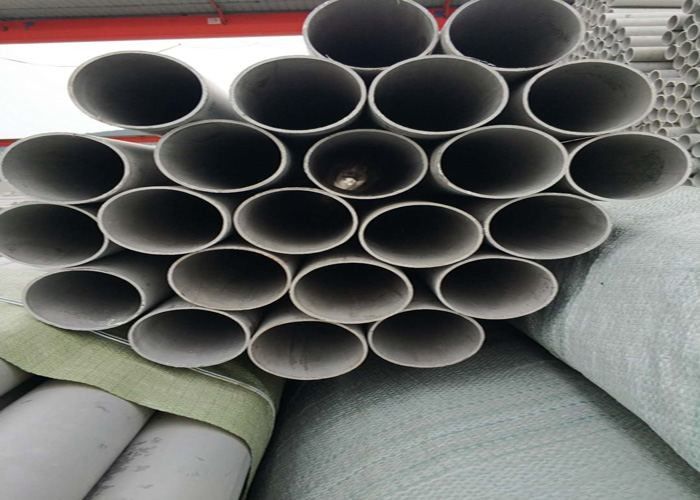

product show in below:
