TP321H / S32109 304 Stainless Steel Seamless Tubing ASTM Standard 1.4878

Name: TP321H / S32109 304 Stainless Steel Seamless Tubing ASTM Standard 1.4878
Brand: Wenzhou Zheheng Steel Industry Co.,Ltd
SKU: 3"*sch40s
Price: 2,600.00 USD
Availability: InStock

Rincian produk

Tempat asal: Cina

Nama merek: zheheng

Sertifikasi: ISO9001 PED

Nomor model: 3"*sch40s

Document: Brosur Produk PDF

Syarat Pembayaran & Pengiriman

Kuantitas min Order: Bisa dinegosiasikan

Harga: Bisa dinegosiasikan

Kemasan rincian: Dalam bundel dengan bahan tahan air, atau kemasan peti kayu

Waktu pengiriman: 30 HARI

Syarat-syarat pembayaran: L/c, t/t, d/a, d/p

Menyediakan kemampuan: 50TON/30 HARI

Dapatkan Harga Terbaik

Rincian produk

Deskripsi Produk

Menyoroti:
                                                                                                                                                                                                                                                304 stainless steel seamless tubing, seamless pipes and tubes


Sertifikat:	ABS, DNV, GL, BV, PED 97/23/EC	Standar:	ASTM, A213
Jenis:	Mulus	Teknik:	Gulungan Dingin
Nama:	Pipa baja tahan karat mulus TP32H	Bahan:	TP321H / S32109 / 1.4878 / X10CRNITI1810

Sertifikat:	ABS, DNV, GL, BV, PED 97/23/EC
Standar:	ASTM, A213
Jenis:	Mulus
Teknik:	Gulungan Dingin
Nama:	Pipa baja tahan karat mulus TP32H
Bahan:	TP321H / S32109 / 1.4878 / X10CRNITI1810

TP321H / S32109 304 Stainless Steel Seamless Tubing ASTM Standard 1.4878

TP321H / S32109 / 1.4878 / X10CRNITI1810 Cold Roll Stainless Steel Seamless Pipe Chemical Properties

We supply US,CN,EU 1.4307 / 321 / 06Cr18Ni11Ti/ 1.4541 /321H /316L / 022Cr17Ni12Mo2 /1.4404 /316H / 07Cr17Ni12Mo2 / 316Ti / 06Cr17Ni12Mo2Ti / 1.4571 SEAMLESS STAINLESS STEEL PIPE CASTM A312 TP321 Stainless Steel Seamless Pipes & Tubes to Oil & Gas, Refineries, Fertilizers, Heat-Exchangers, Paper & Pulp, Pharmaceuticals, Chemicals, Water Treatment, Dairy, Sugar & Food Processing, Construction, Mining, Shipbuilding, Offshore, Defence, Ports, Railway, Nuclear Power, Power Plant, Cement, Government Org., Engineering Co., Oil Mills, and other industrial projects.

TP321H / S32109 / 1.4878 / X10CRNITI1810 seamless pipe description:

Material:	TP321H / S32109 / 1.4878 / X10CRNITI1810 Cold Roll Stainless Steel Seamless Pipe Chemical Properties
Standard:	GB, AISI, ASTM, ASME, EN, BS, DIN, JIS
Size:	ANSI /ASME size is under,other standard of size is for ready choice,O.D.:0.23''to 48''(5.8-1219mm)W.T.:0.04''to 2''(1.0-50.8mm)
Length:	Max.18 Meter,NPS 1/8''-48'' Schedule:5/5S,10/10S,20/20S,40/40S,80/80S,120/120S,160/160S according to ANSI B36.19/36.10
Surface:	Satin Finish(180#.240#.320#).,Bright Finish(400#,600#,mirror),Mill Finish(2B),Hairline-Finish(HL/Brushed),Ti-gold, Glossy matt,dull and so on.
Application:	Decoration, construction and upholstery, etc
Package:	Each tube in a plastic bag with size label outside and pack in small bundles or according to customer request
Lead Time:	7-10days for one FCL Or according to order list detail
Payment:	A: 100% T/T advance. ( For small order.) B: 30% T/T and balance against copy of documents. C: 30% T/T advance, balance L/C at sight D: 30% T/T , balance L/C usance E: 100% L/C usance. F: 100% L/C at sight.
Sample:	we could offer the sample for free charge but do not pay the cost of freight.

321 / 316L chemical composion table

US,CN,EU 1.4307 / 321 / 06Cr18Ni11Ti/ 1.4541 /321H /316L / 022Cr17Ni12Mo2 /1.4404 /316H / 07Cr17Ni12Mo2 / 316Ti / 06Cr17Ni12Mo2Ti / 1.4571 SEAMLESS STAINLESS STEEL PIPE CHEMICAL COMPARISON TABLE

STEEL/GRADE

OTHER

1.4307	1.4307	0.03	2	0.045	0.015	1	8~10	17.5~19.5
321	S32100	0.08	2	0.045	0.03	1	9~12	17~19		5C-0.7
06Cr18Ni11Ti	S32168	0.08	2	0.035	0.03	1	9~12	17~19		5C~0.7
1.4541	1.4541	0.08	2	0.045	0.015	1	9~12	17~19		5C~0.7
321H	S32169	0.04~0.1	2	0.045	0.03	1	9~12	17~19		4C~0.7
316L	S31603	0.03	2	0.045	0.03	1	10~14	16~18	2-3
022Cr17Ni12Mo2	S31603	0.03	2	0.035	0.03	1	10~14	16~18	2-3
1.4404	1.4404	0.03	2	0.045	0.015	1	10~13	16.5~18.5	2-2.5
316H	S31609	0.04~0.1	2	0.045	0.03	1	10~14	16~18	2-3
07Cr17Ni12Mo2	S31609	0.04~0.1	2	0.035	0.03	1	10~14	16~18	2-3
316Ti	S31635	0.08	2	0.045	0.03	1	10~14	16~18	2-3	5(C+N)~0.7
06Cr17Ni12Mo2Ti	S31668	0.08	2	0.035	0.03	1	10~14	16~18	2-3	5C~0.7
1.4571	1.4571	0.08	2	0.045	0.015	1	10.5~13.5	16.5~18.5	2-2.5	5C~0.7

Mechanical Properties complementary:
1 Tensile Requirements:
1.1 The material shall conform to the requirements as to
tensile properties
1.3 One tension test shall be made on a specimen from one
tube for lots of not more than 50 tubes. Tension tests shall be
made on specimens from two tubes for lots of more than 50
tubes. See 15.2.
2 Hardness Requirements:

2.1 The material shall conform to the hardness require-
ments

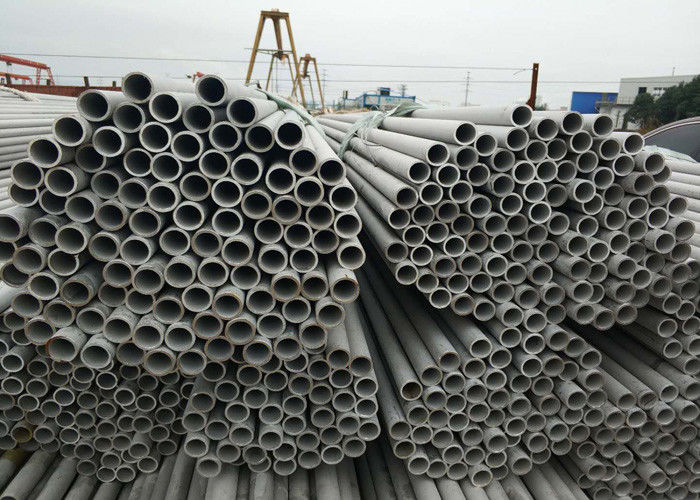

product show for reference:

TP321H / S32109 304 Stainless Steel Seamless Tubing ASTM Standard 1.4878 0
